Work: Muguang Xinnong—Flexible Photovoltaic Greenhouse Building Dreams of Rural Revitalization
Award: First Prize
Participating institutions: Changzhou Institute of Technology
Competition direction: Digital Industrial Design Competition
Team Name: Maverick
Instructor: Chen Gong Xu Qingquan
Team members: Tang Mingxuan, Yuan Xin, Xu Yuguo, Hu Wenyao, Sun Baoyi
design background
The 2018 report on revitalizing the countryside pointed out: technology goes to the countryside to help farmers get rich
Propose the strategy of “rejuvenating agriculture with science and technology and revitalizing rural areas”
Use the roof of traditional agricultural greenhouses to generate solar power, and develop high-efficiency ecological agriculture in the shed.
gallery
❖Using rigid photovoltaic panels to block dirt and generate hot spots
The first generation of flexible photovoltaic greenhouses

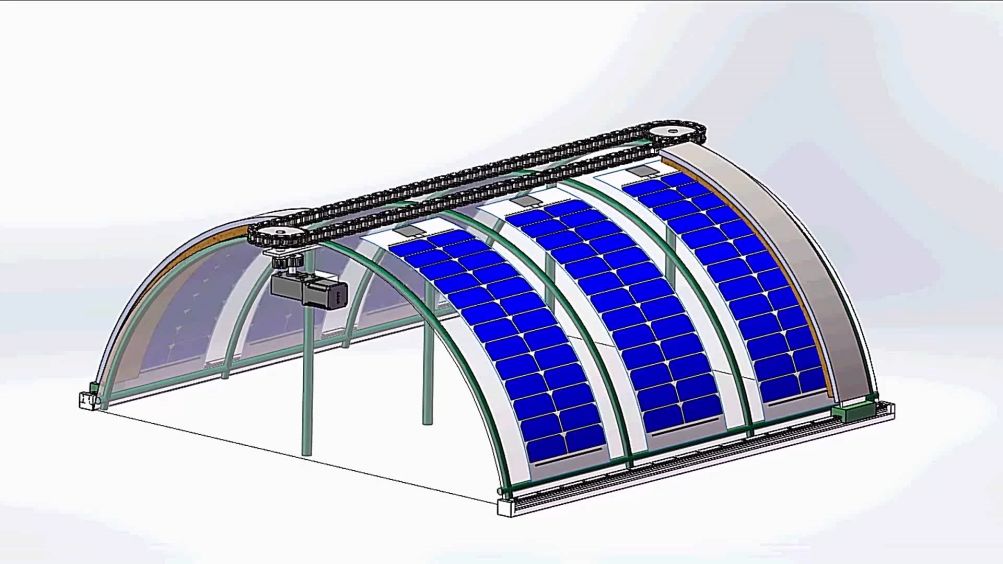

The second generation of flexible photovoltaic greenhouses

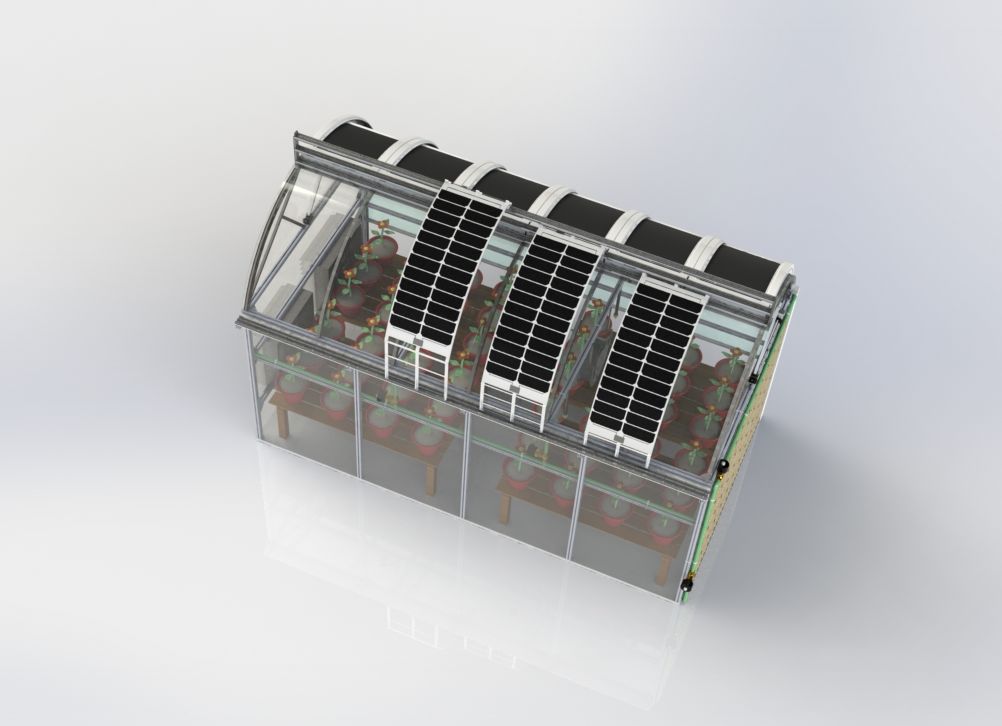

Greenhouses of the third generation flexible photovoltaic panels

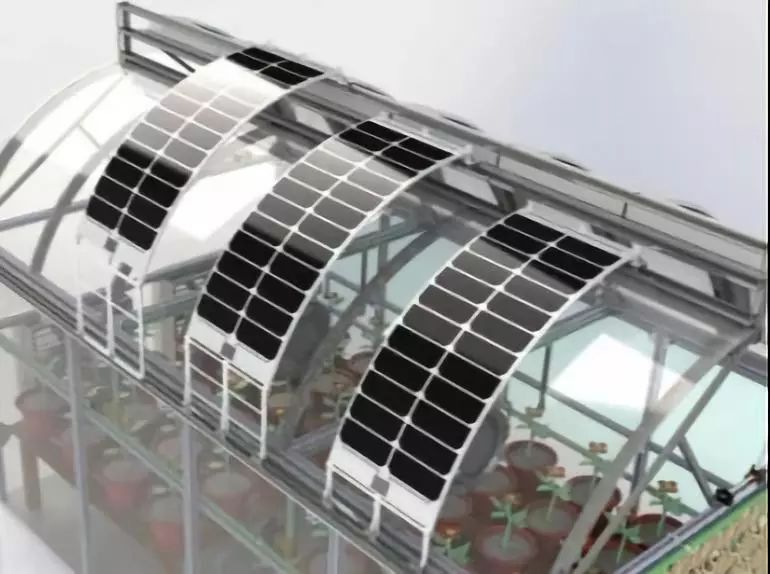

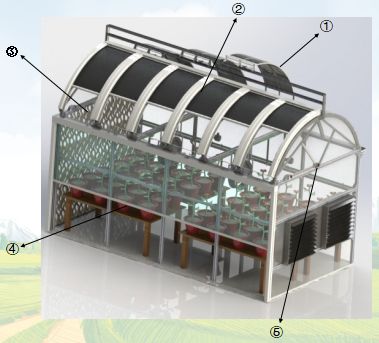

①Removable overlapping flexible photovoltaic panels
②Rollable electric photovoltaic canopy

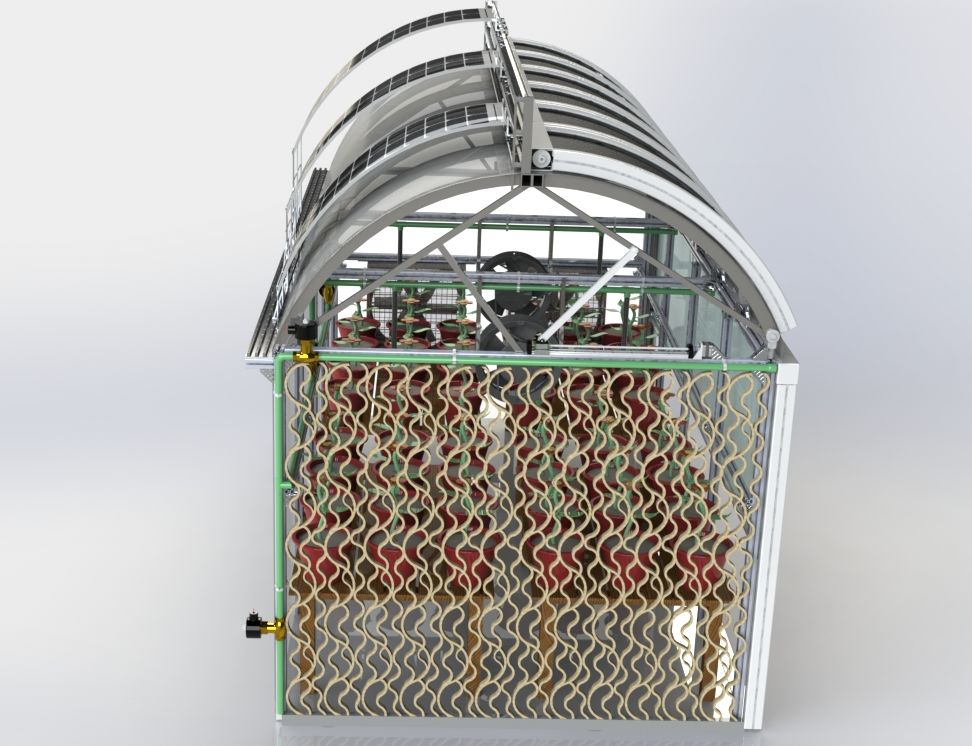

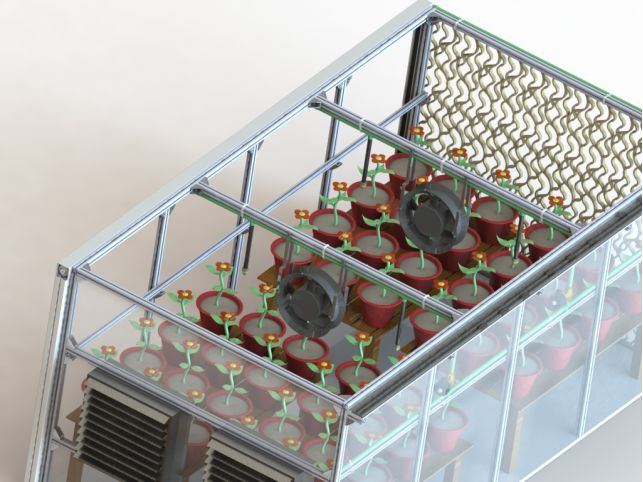

③Water curtain wall with honeycomb structure and axial flow fan
④ Electric film roller shutter
⑤The roof can be opened and closed
❖Start water circulation and fertilization system
collect rainwater
Solenoid valve controls the proportion of nutrient solution
Soil pH Sensor
Work innovation
❖Flexible solar photovoltaic panels
❖Photovoltaic panel stacking device

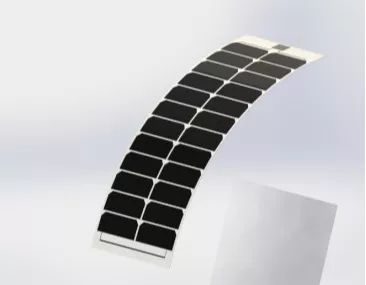

Using flexible solar panels
Automatic recycling and cleaning of photovoltaic panels
Improve the light transmittance of the greenhouse
Integration of Fertilization and Irrigation
remote control
